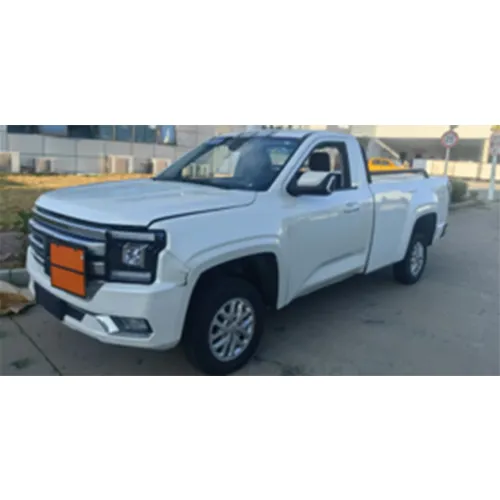

A mining safety DaDao single-cab heavy-duty fuel chassis featuring a heavy-duty platform and electronically controlled part-time 4WD system, offering strong load capacity, off-road capability, and modification adaptability for mine material transport, inspection, and specialized vehicle applications.
| Overall dimensions, mm | 5440×1935×1836 |
| Wheelbase, mm | 3270/3470 |
| Cargo box dimensions, mm | 2316×1595×546 |
| Front / rear track, mm | 1620 |
| Front / rear axle load | 1.5 t front / 2.5 t rear |
| Front / rear axle ratio | 4.556 |
| Gradeability | 14°, starting in 2nd gear |
| 2nd gear ratio of transmission | 2.839, MT & 3.2, AT |
| Engine | NB2.5ZG4 |
| Diesel engine power, kW | 128 |
| Maximum diesel engine torque, Nm | 450–500 |
| Transmission type | 3-speed manual transmission & 8-speed automatic transmission |
| Front suspension | Double wishbone independent suspension with coil springs |
| Rear suspension | Leaf spring independent suspension |
| Transfer case | Part-time 4WD, electronically controlled |
| Tires | 265/65 R17 |

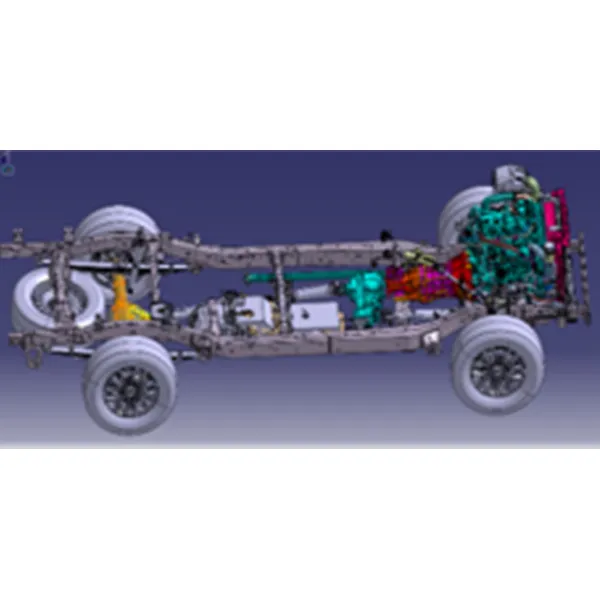

| Schematic diagram | / |
