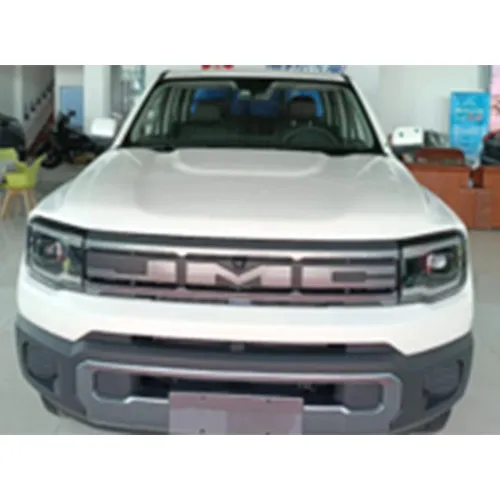

A coal mine safety explosion-proof electric pickup with electric 4WD, suitable for mine inspection, material transport, and operation support.
A coal mine safety explosion-proof electric pickup with electric 4WD, suitable for mine inspection, material transport, and operation support.
| Overall dimensions, mm | 5322×1882×1852 |
| Wheelbase, mm | 3150, modified based on Yuhu 7 chassis frame |
| Cargo box dimensions, mm | 1545×1595×545 |
| Front / rear track, mm | 1570 |
| Front / rear axle load | 1.5 t front / 2.5 t rear |
| Front / rear axle ratio | 4.556 |
| Gradeability | / |
| 2nd gear ratio of transmission | / |
| Engine | / |
| Diesel engine power, kW | / |
| Maximum diesel engine torque, Nm | / |
| Transmission type | / |
| Front suspension | Double wishbone independent suspension with coil springs |
| Rear suspension | Leaf spring dependent suspension |
| Transfer case | Electric 4WD |
| Tires | 245/70 R17.5 |
| Schematic diagram | / |
