Records and analyzes the heart's electrical activity for cardiac diagnosis support.
Records and analyzes the heart's electrical activity for cardiac diagnosis support.
| Types | Product Details |
| Steering | Left-hand drive (LHD) / Right-hand drive (RHD) |

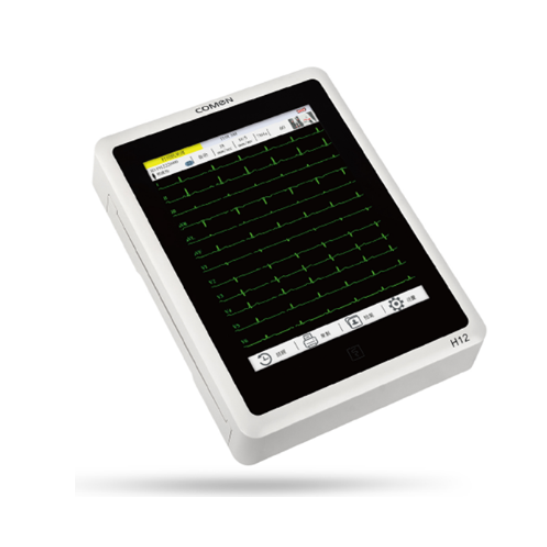

| ECG Machine No. 1 | The device features a 10.4-inch LED HD touchscreen with an innovative full vertical display, no physical buttons, and full touch operation allowing vertical scrolling to select functions. It supports Chinese patient information input via handwriting, Pinyin, and Wubi, enabling quick and convenient data entry. It synchronously acquires, amplifies, and records 12-lead ECG waveforms with a polarization voltage tolerance of ≥±650mV, common mode rejection ratio ≥105dB, and time constant ≥5s, offering strong anti-interference and accurate ECG waveform capture. In automatic mode, it can create patient records, storing up to 10,000 cases on an SD card. The screen has a 1:1 ratio to A4 paper size, allowing on-screen diagnosis. The main unit includes a built-in 210mm wide thermal line printer with folded paper printing. |

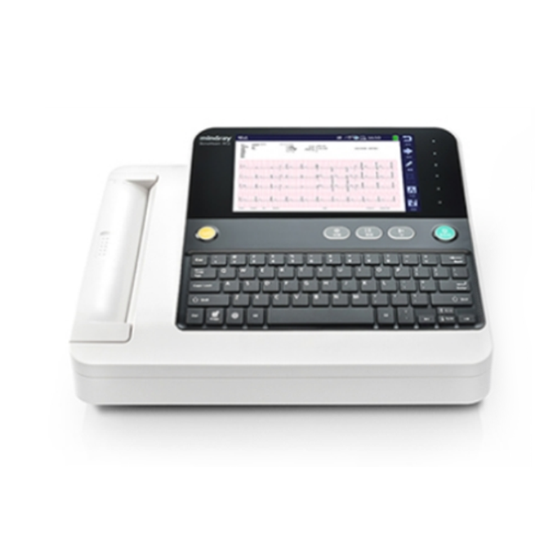

| ECG Machine No. 2 | The data accuracy is ensured by the Glasgow algorithm with 50 years of history, the world's first to consider age, gender, ethnicity, medication, and type as diagnostic factors, guaranteeing precise diagnosis—especially crucial for acute myocardial infarction (AMI). Critical diagnostic results such as AMI, acute myocardial ischemia, ventricular fibrillation and tachycardia, severe bradycardia, and malignant arrhythmias are highlighted as critical values for prompt identification and timely treatment by medical staff. Operation is simple and fast with a 1-2-3 step process: power on, enter patient ID, ECG acquisition, completing the ECG report efficiently to handle busy ECG examinations. The standard computer full keyboard offers convenient use, and intuitive shortcut keys ensure a clear workflow; an optional touchscreen provides a more comfortable and user-friendly experience. |

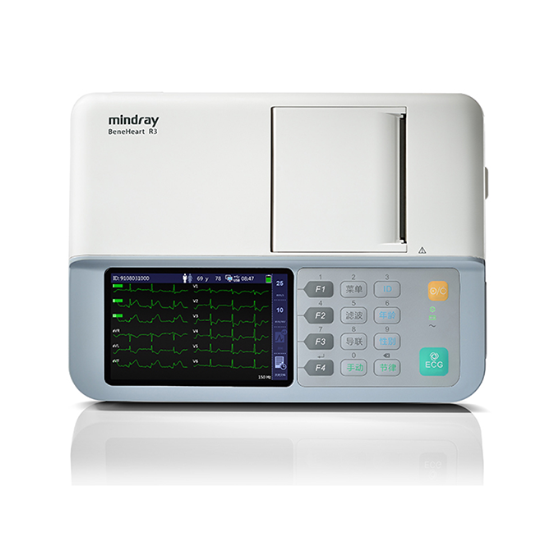

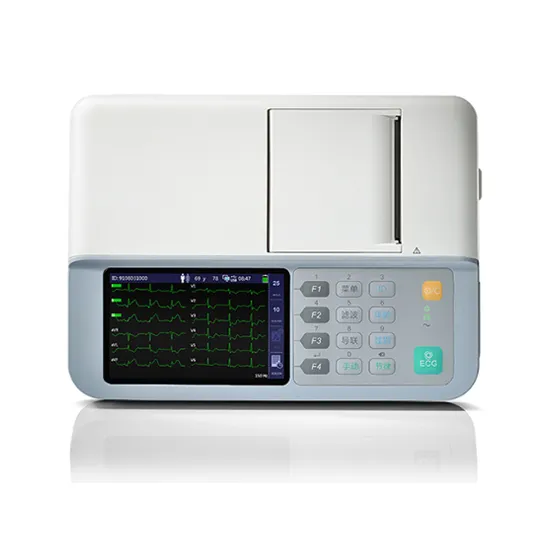

| ECG Machine No. 3 | Powerful data management with built-in storage of up to 800 reports; PDF format reports can be directly imported to a computer via USB for viewing or storage without the need for additional software, making management simple, convenient, and cost-effective; XML format reports can be uploaded wirelessly or wired to the customized Cardiovista ECG viewing software to achieve workflow automation and improve user efficiency; it can connect to an external laser printer to print ECG reports directly on A4 paper, saving costs and making storage easier; the optional touchscreen ensures a clear workflow and provides a more comfortable and convenient user experience. |
