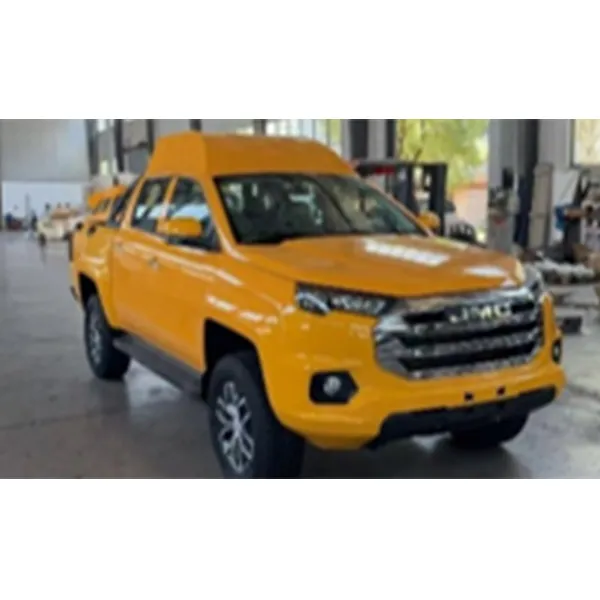

A mining safety Category III fuel chassis with part-time 4WD, strong load capacity, and suitability for mine transport, inspection, and specialized vehicle modification.
A mining safety Category III fuel chassis with part-time 4WD, strong load capacity, and suitability for mine transport, inspection, and specialized vehicle modification.
| Overall dimensions, mm | / |
| Wheelbase, mm | 2750/3085/3150/3350 |
| Cargo box dimensions, mm | / |
| Front / rear track, mm | 1570 |
| Front / rear axle load | 1.5 t front / 2.5 t rear |
| Front / rear axle ratio | 4.556 |
| Gradeability | 14°, starting in 2nd gear |
| 2nd gear ratio of transmission | 2.839, MT & 3.2, AT |
| Engine | NB2.5ZG4 |
| Diesel engine power, kW | 128 |
| Maximum diesel engine torque, Nm | 450–500 |
| Transmission type | 3MT & 8AT |
| Front suspension | Double wishbone independent suspension with coil springs |
| Rear suspension | Leaf spring dependent suspension |
| Transfer case | Part-time 4WD, electronically controlled |
| Tires | 245/70 R17.5 |

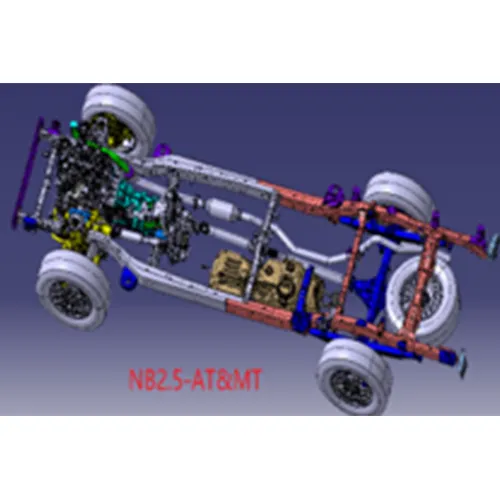

| Schematic diagram | / |
