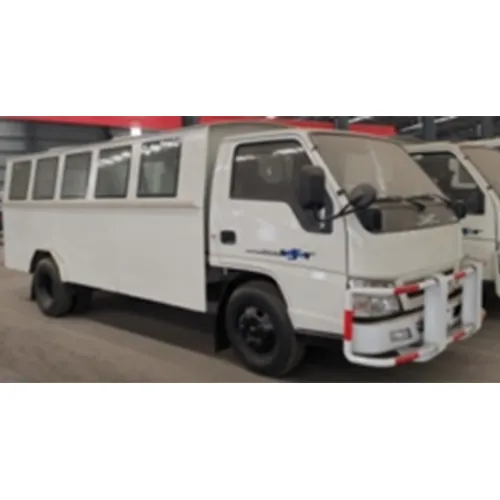

A mining safety fuel personnel carrier with manual transmission, suitable for mine personnel transport, inspection commuting, and field operation support.
A mining safety fuel personnel carrier with manual transmission, suitable for mine personnel transport, inspection commuting, and field operation support.
| Base vehicle model | T822-7 Series New Kaiyun with NB25 medium-body version |
| Overall dimensions, mm | 5918×2007/2041×2276/2295 |
| Cab exterior width | 1890 |
| Wheelbase, mm | 3358 |
| Curb weight, t | / |
| Maximum gross weight, t | 7 |
| Front / rear axle load | 2.9/5 |
| Rear axle ratio | 4.222/4.375 |
| Transmission | 6MT/8MT |
| 2nd gear ratio of transmission | 3.526/5.346 |
| Engine model | NB25ZG4 |
| Diesel engine power, kW | 128 |
| Maximum diesel engine torque, Nm | 480 |
| Number of leaf spring plates, front / rear | Few-leaf spring, 3/8+3 |
| Minimum ground clearance at rear axle under full load, mm | 162 |
| Minimum turning radius, m | 7 |
| Tires | 7.00R16LT/7.50R16LT |
