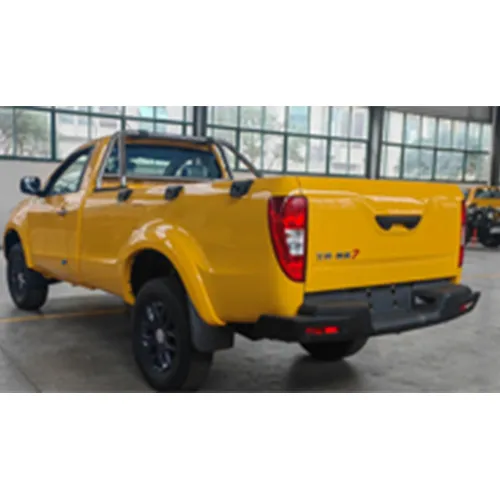

A mining-duty single-cab heavy-duty pickup with a reinforced chassis and part-time 4WD system, offering strong load capacity and off-road performance for mine inspection, material transport, and field operations.
A mining-duty single-cab heavy-duty pickup with a reinforced chassis and part-time 4WD system, offering strong load capacity and off-road performance for mine inspection, material transport, and field operations.
| Overall dimensions, mm | 5375×1905×1905 |
| Wheelbase, mm | 3085 |
| Cargo box dimensions, mm | 2240×1475×500 |
| Front / rear track, mm | 1570 |
| Front / rear axle load | 1.5 t front / 2.0 t or 2.5 t rear |
| Front / rear axle ratio | 4.556 |
| Gradeability | 14°, starting in 2nd gear |
| 2nd gear ratio of transmission | 3.033 |
| Engine | JX493ZG4A |
| Diesel engine power, kW | 90 |
| Maximum diesel engine torque, Nm | 350 |
| Transmission type | 3-speed manual transmission |
| Front suspension | Double wishbone independent suspension with coil springs |
| Rear suspension | Leaf spring dependent suspension |
| Transfer case | Part-time 4WD, manual |
| Tires | 245/70 R17, 245/70 R17.5 |
| Additional equipment | Air conditioning / rear-view camera |
