ALS SZY5036XJH6

APK/Ambulance/JMC Fushun/SWB/MLR/AT-MT/Diesel. Ambulance provides comprehensive pre-hospital emergency care for critically ill or severely injured patients, the vehicle can be customized with various exterior designs, interior layouts, and medical configurations based on customer requirements.

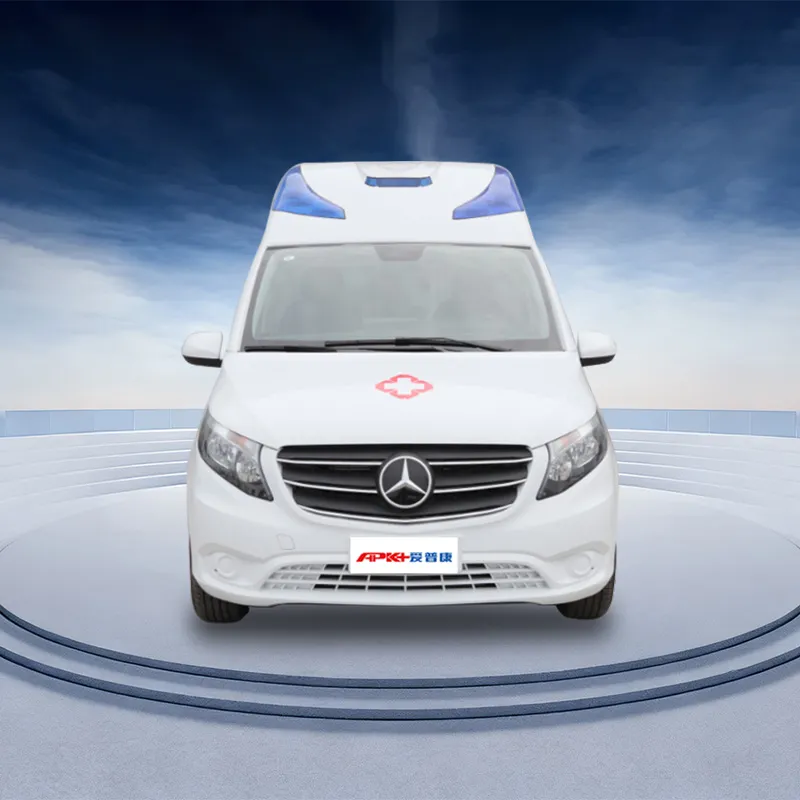

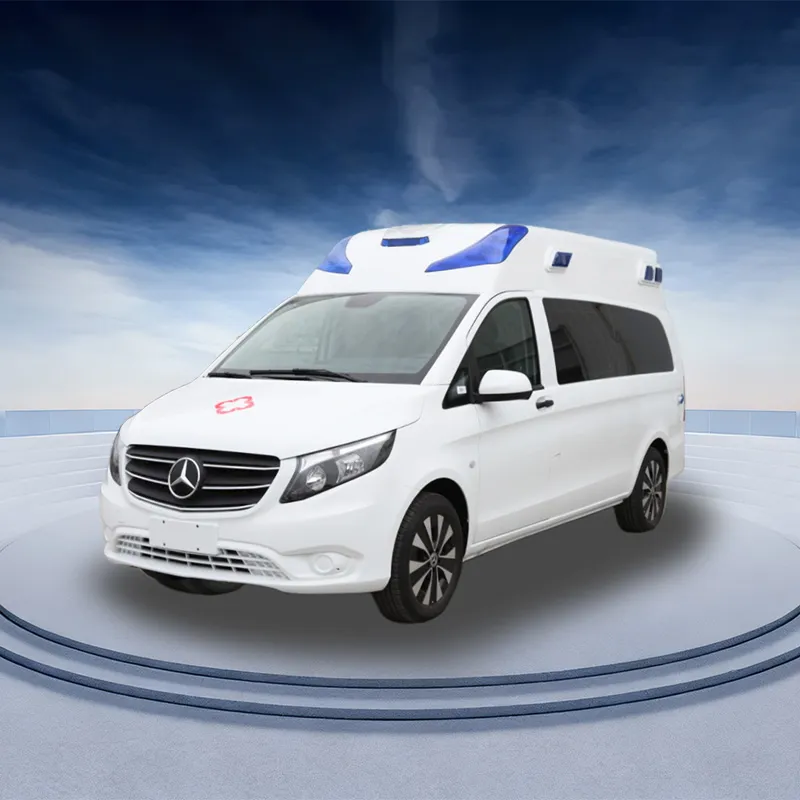

Specification of ALS SZY5036XJH6 Ambulance


Aipukang Ambulance
Mercedes-Benz
Main Vehicle Specifications
No.Parameter itemsTechnical specifications
1Dimensions (mm)Length: 5370, Width: 1928, Height: 2290
2Medical cabin dimensions (mm)Length: 2640, Width: 1670, Height: 1700
3Wheelbase (mm)3430
4Power (kw)170
5Maximum torque (N.m)370
6Fuel consumption8.24
7Placement and drive modeFront-engine, rear-wheel drive
8Transmission9-speed automatic transmission
9SteeringLeft-hand drive (LHD) / Right-hand drive (RHD)
10Maximum gross weight (kg)3100
11Curb weight (kg)2030
12Engine model254920
13Engine displacement (mL)1999
14Fuel typeGasoline
15Fuel tank capacity (L)70
16Engine typeTurbocharged
17Emission standardGB18352.6-2016 National VI
18Braking systemABS + EBD four-wheel disc brakes
19Tires235/55R17
20Track width (front/rear) (mm)1666/1646
21Occupant Capacity5-7 people
22Suspension SystemFront MacPherson independent suspension / Rear semi-trailing arm non-independent suspension.
23Air Conditioning SystemHeating and cooling air conditioning, front and rear dual air conditioning/dual constant temperature, independent control.
24Heating RequirementAt an ambient temperature of -20°C, the heating system must raise the internal temperature to at least 16°C within 15 minutes of activation.
25Cooling RequirementAt an ambient temperature of 40°C, the internal temperature must be at least 7°C lower than the ambient temperature.
26Water TemperatureIn high-temperature environments (ambient temperature of 60°C) and while the engine is continuously running in a parked state, the water temperature should remain below 95°C.
27AirbagsBoth the driver and passenger seats are equipped with airbags (dual airbags).
28Steering SystemHydraulic power steering, adjustable steering wheel angle.
29OthersElectric windows on both sides, two remote control keys, keyless start, electronic parking brake, 5.5-inch color LCD display embedded in the central control, cruise control, HOLD function, tire pressure monitoring.
30Sliding Door WindowOn the right side of the medical cabin, the side sliding door has a movable glass window. The window's movement range can be adjusted in multiple stages as needed, with a locking device at each stage.
