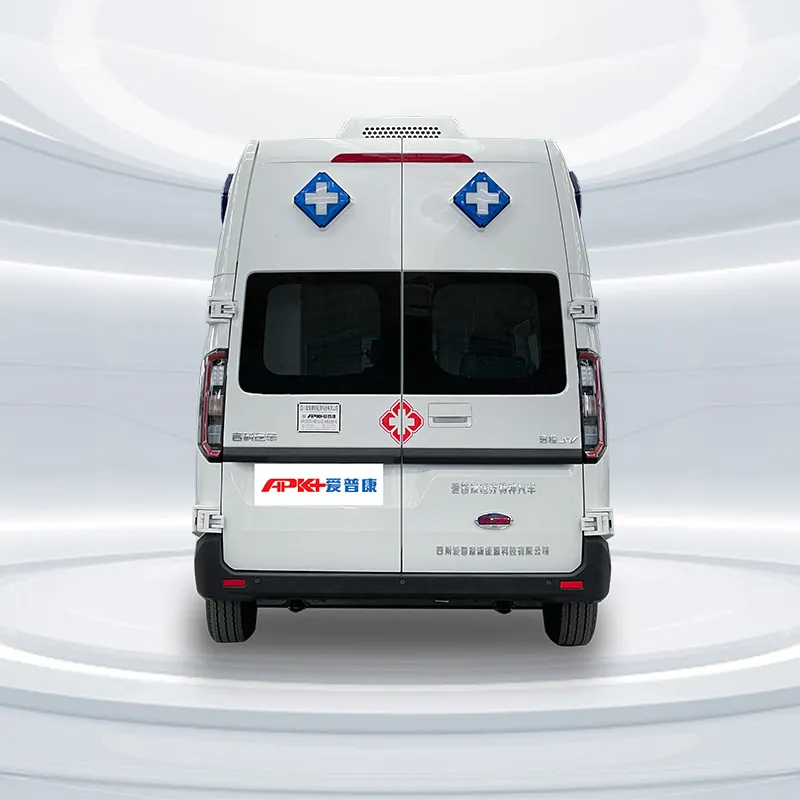

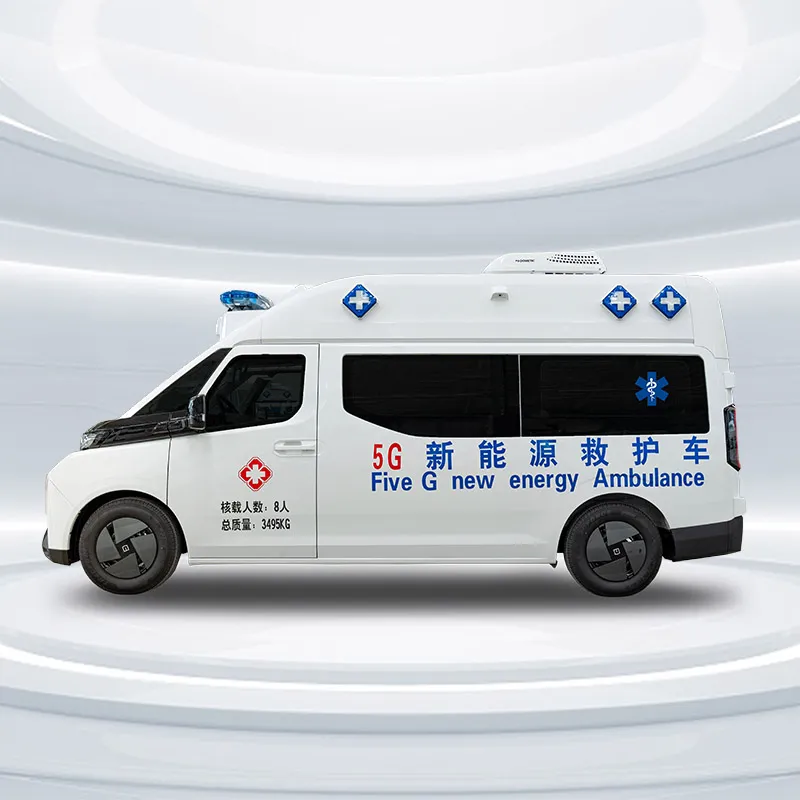

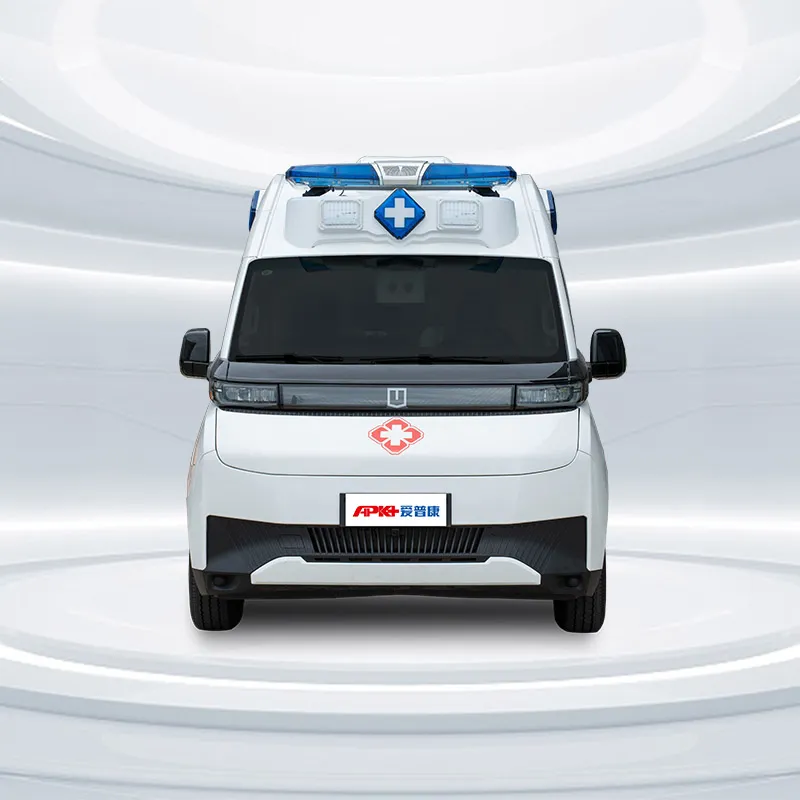

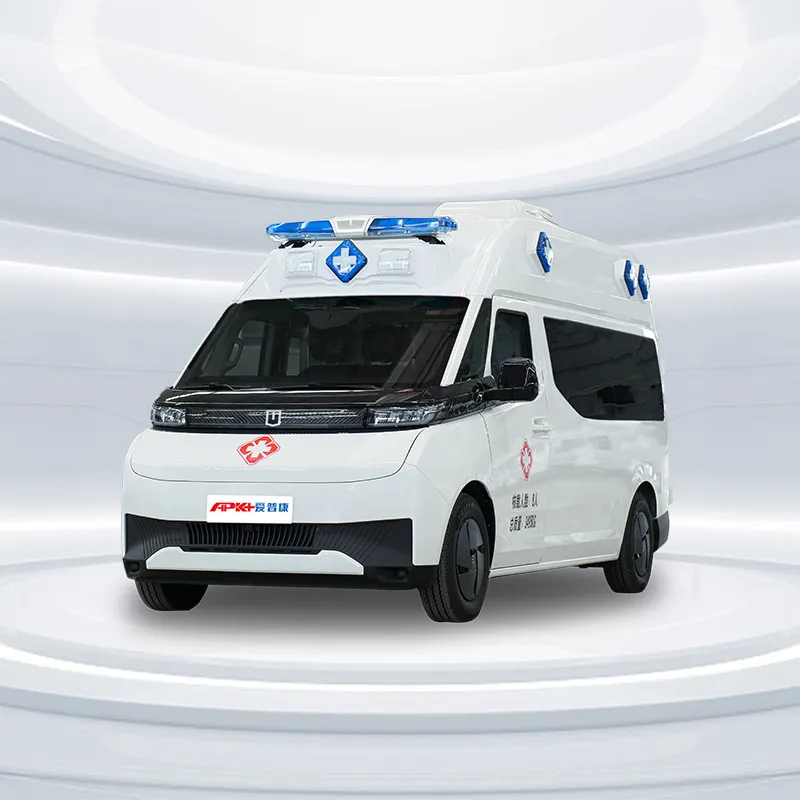

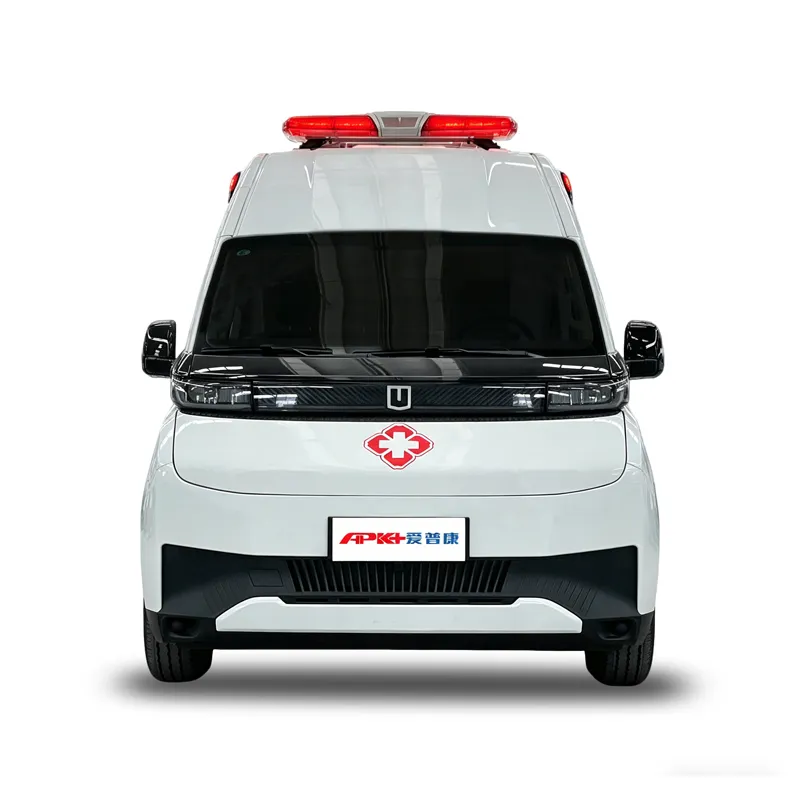

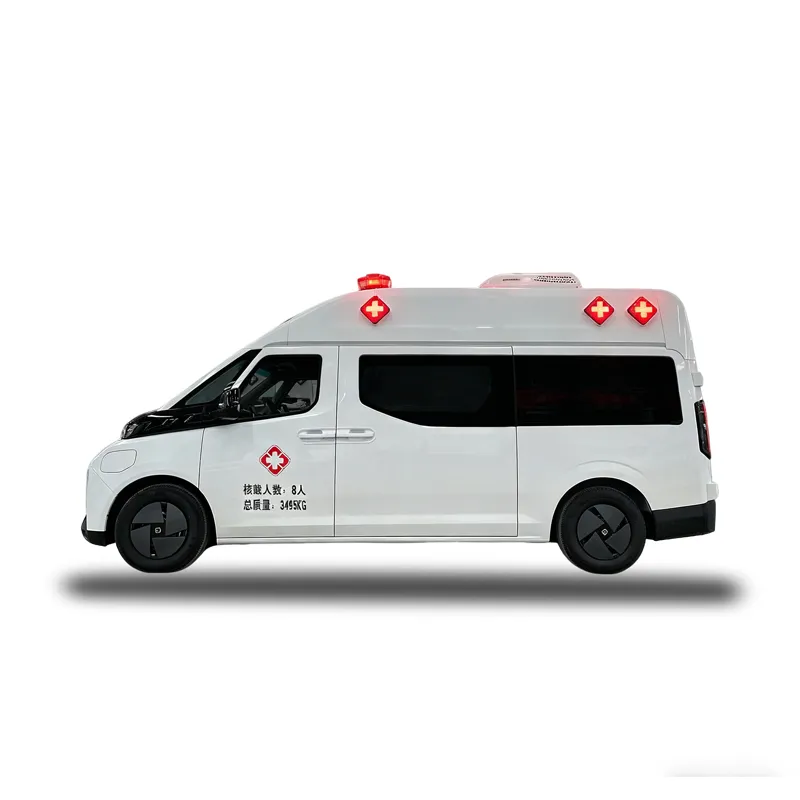

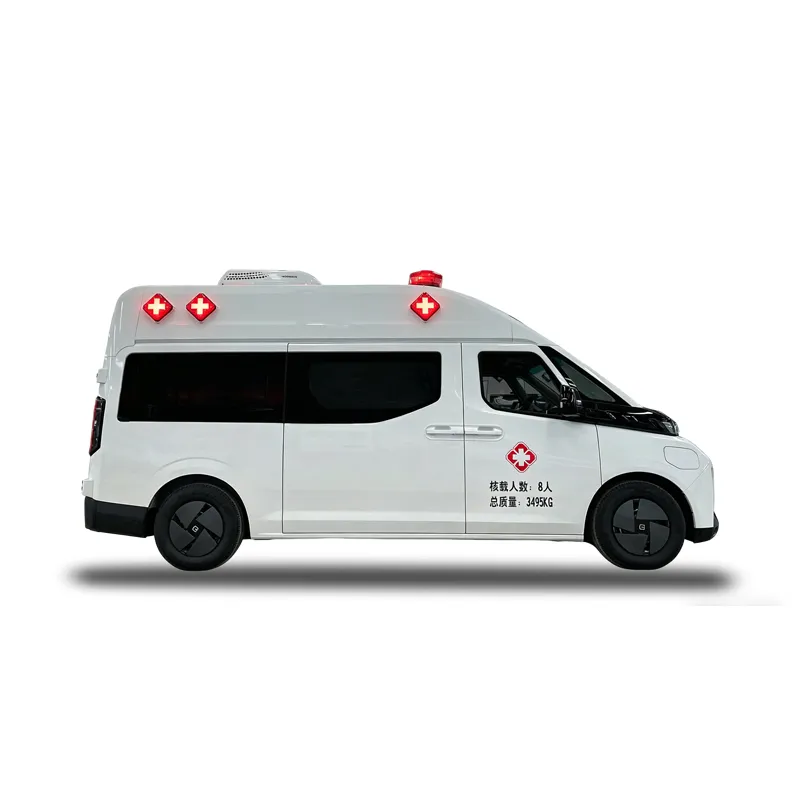

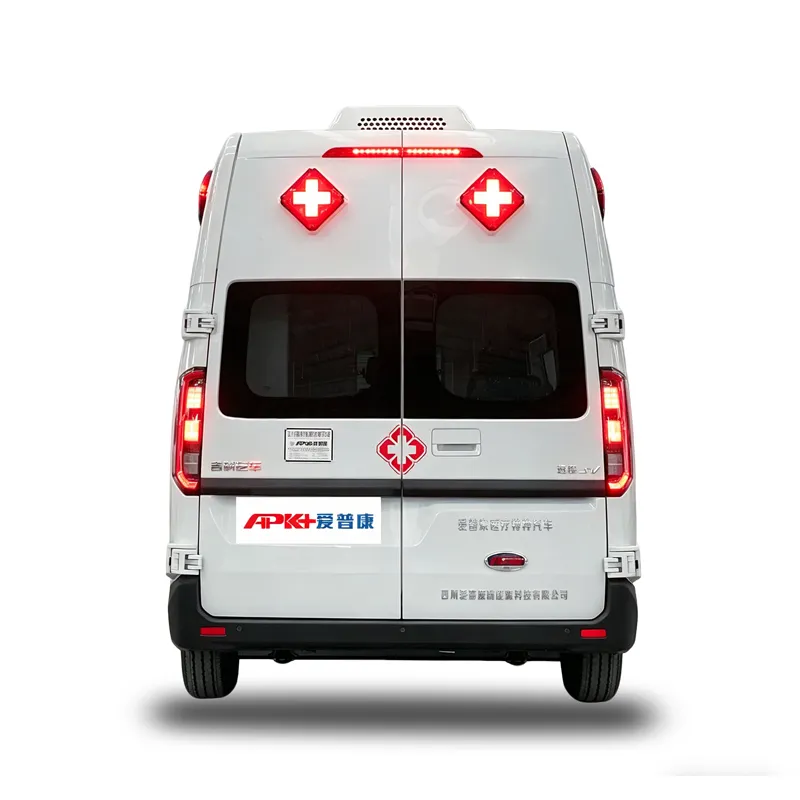

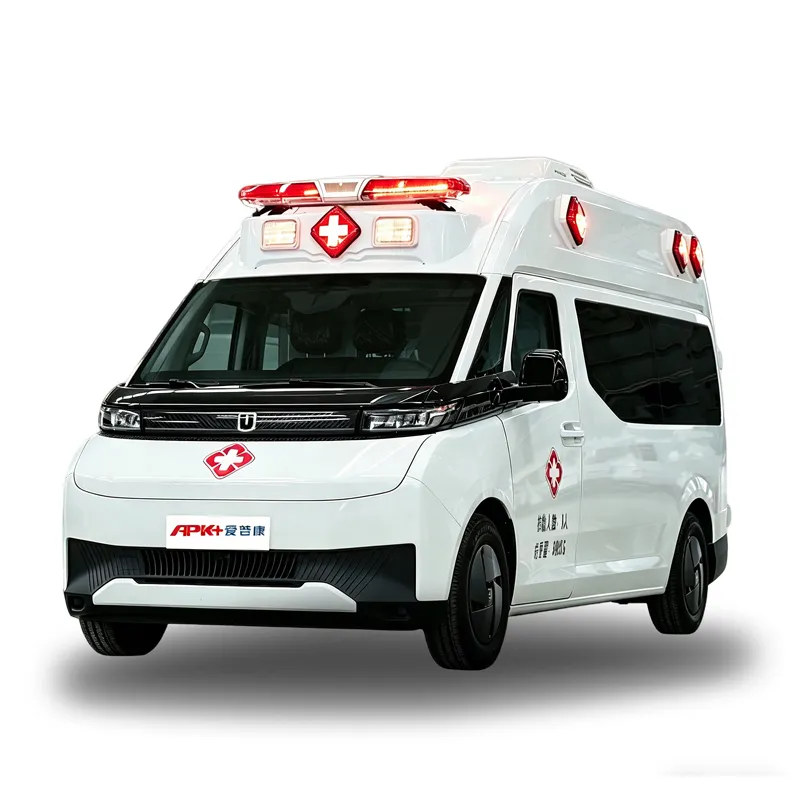

APK/Ambulance/Geely/MWB/LR/AT/New Energy. Ambulance provides basic first aid and patient transport services, the vehicle can be customized with different exterior designs, interior configurations, and medical equipment according to customer requirements.
| Main Vehicle Specifications | |
| Dimensions (mm) | Length: 5495 Width: 1980 |
| Corresponding Optional Style Height | Height: 2700 |
| Drive Motor Technology | Motor Brand: HASCO Magna |
| Motor Type: Permanent Magnet Synchronous | |
| Battery Brand | CATL 83kWh |
| Battery Heating/Cooling | Liquid Cooling and Heating |
| Motor Rated Power / Peak Power (kW) | 66/170 |
| Braking System | Front and Rear Disc Brakes |
| Drive Mode | Front-Wheel Drive |
| Steering System | Electric Power Steering |
| Wheelbase (mm) | 3600 |
| Transmission Type | Single-Speed Electric Transmission |
| Steering | Left-hand drive (LHD) / Right-hand drive (RHD) |
| Vehicle Safety Assistance System | ABS |
| Maximum Torque (N·m / rpm) | 336 |
| Maximum Vehicle Speed (km/h) | 100 |
| Rated Passenger Capacity (seats) | 8 persons |
| Standard Vehicle Features | 2 Remote Control Keys |
| Overspeed Warning | |
| Electric Air Conditioning | |
| One-Touch Start | |
| LED Headlights | |
| Rear Parking Radar | |
| Multifunction Steering Wheel | |
| Driver and Front Passenger Airbags | |
| Rear Fog Light + High-Mounted Brake Light | |
| DC Fast Charging: 36 minutes, AC Slow Charging: 9 hours | |
| Electric Mirror Adjustment + Heated Defrost Function | |
| Configuration | |
| Warning Lights Siren and External Lighting System | |
| 1 | Adjustable Alarm Sound |
| 2 | Warning Light and Siren Power |
| 3 | Warning Light and Siren Voice Microphone |
| 4 | Cabin Warning Light and Siren Control Handle |
| 5 | Long Row Warning Light Mounted on the Roof |
| 6 | Strobe Warning Lights on All Sides |

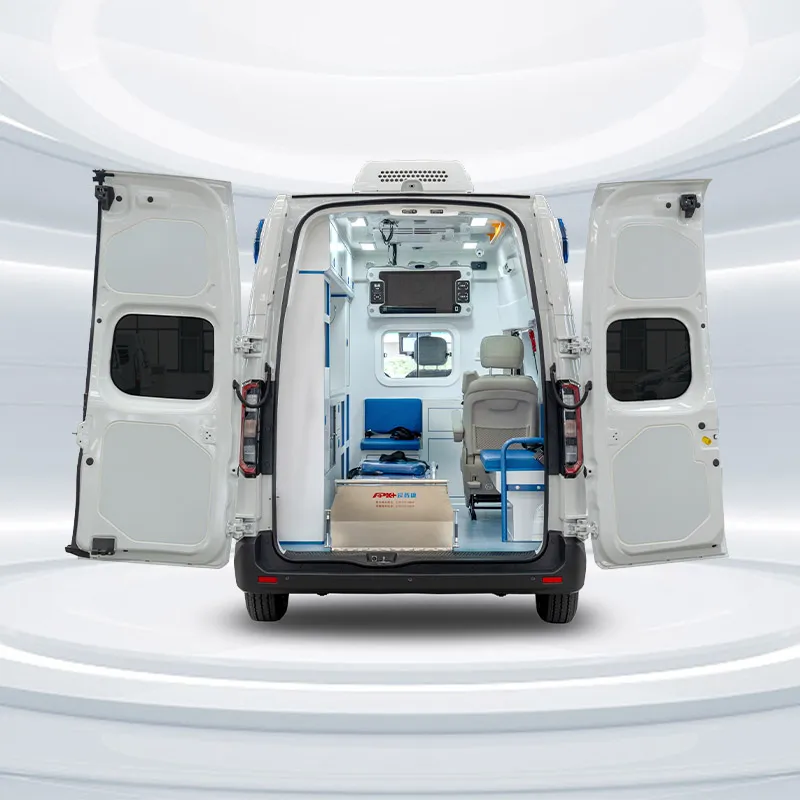

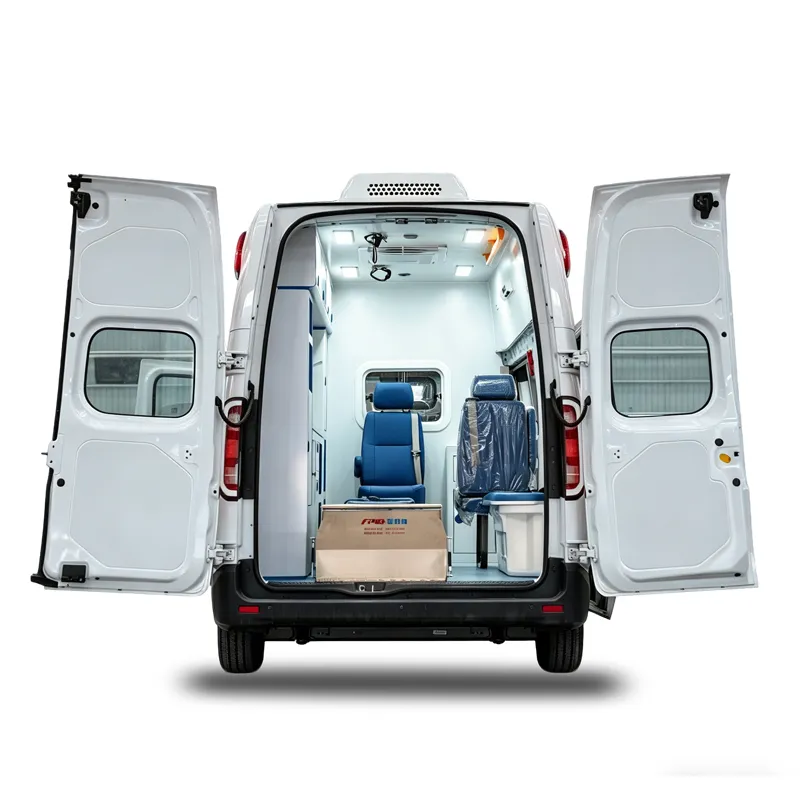

| Medical Cabin | |
| 7 | Waste Bucket |
| 8 | Oxygen Cylinder |
| 9 | Humidifier Bottle |
| 10 | Oxygen Cylinder Bracket |
| 11 | Oxygen Cylinder Base |
| 12 | Oxygen Main Pipeline |
| 13 | Oxygen Cylinder Pressure Regulator |
| 14 | Humidifier Bottle Connector Base |
| 15 | Environmentally Friendly Floor Mat |
| 16 | Medical Cabin Interior Top Wall |
| 17 | Medical Cabin Air Conditioning System |
| 18 | Medical Cabin Top Lighting |
| 19 | Medical Cabin Air Conditioning Air Outlet |
| 20 | Medical Cabin Ceiling |
| 21 | Medical Cabin Ceiling Handrail |
| 22 | Right Side Single Independent Seat |
| 23 | Medical Cabin Ceiling IV Hook |
| 24 | Observation Window Installed in Partition Wall |
| 25 | Medical Cabin Left Side Oxygen Cylinder Cabinet |
| 26 | Medical Cabin Left Side Lower Storage Cabinet |
| 27 | Partition Wall Installed Between Cabin and Medical Cabin |
| 28 | High-Power Long Strip Ultraviolet Sterilization Lamp in Medical Cabin |
| Specialized Instruments and Equipment | |
| 29 | Stretcher Collision-Proof Headrest |
| 30 | Automatic Boarding Stretcher |
| 31 | Stainless Steel Boarding Tailboard |
| 32 | Automatic Boarding Stretcher Guide Rail |
| 33 | DC Power Socket |
| 34 | Power System Switch |
| 35 | AC Power Socket |
| 36 | Auxiliary Battery Device |
| 37 | Sine Wave Inverter Power |
| 38 | Charging and Power-off Protection Device |
| Optional Equipment (Additional Cost) | |
| 39 | Electrocardiograph |
| 40 | Monitor |
| 41 | Defibrillator |
| 42 | Ventilator |
| 43 | 5G Smart Gateway Integrated Device |
| 44 | Smart Central Control Integrated Device |
