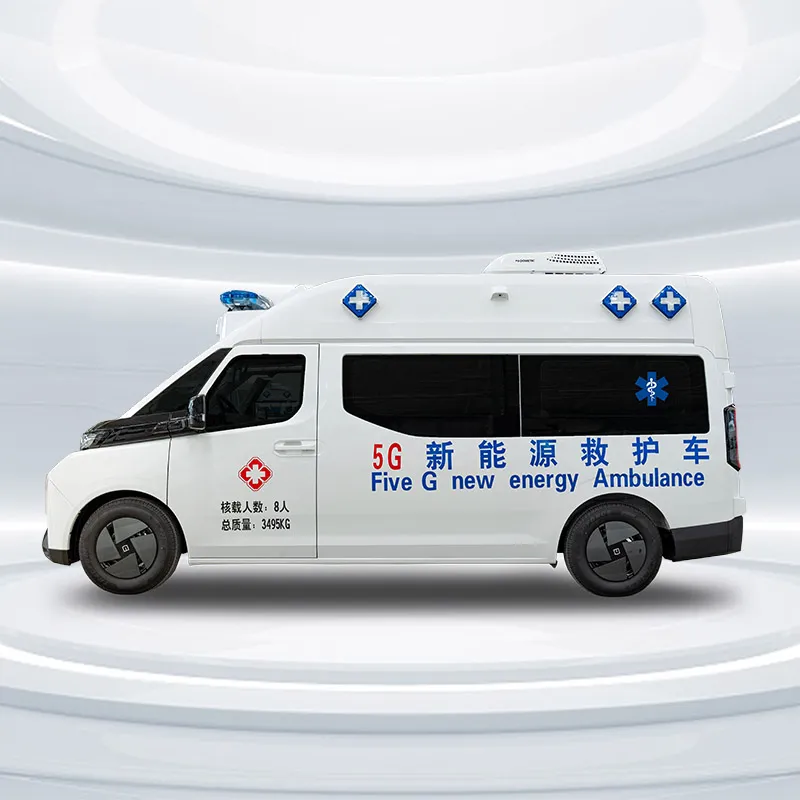

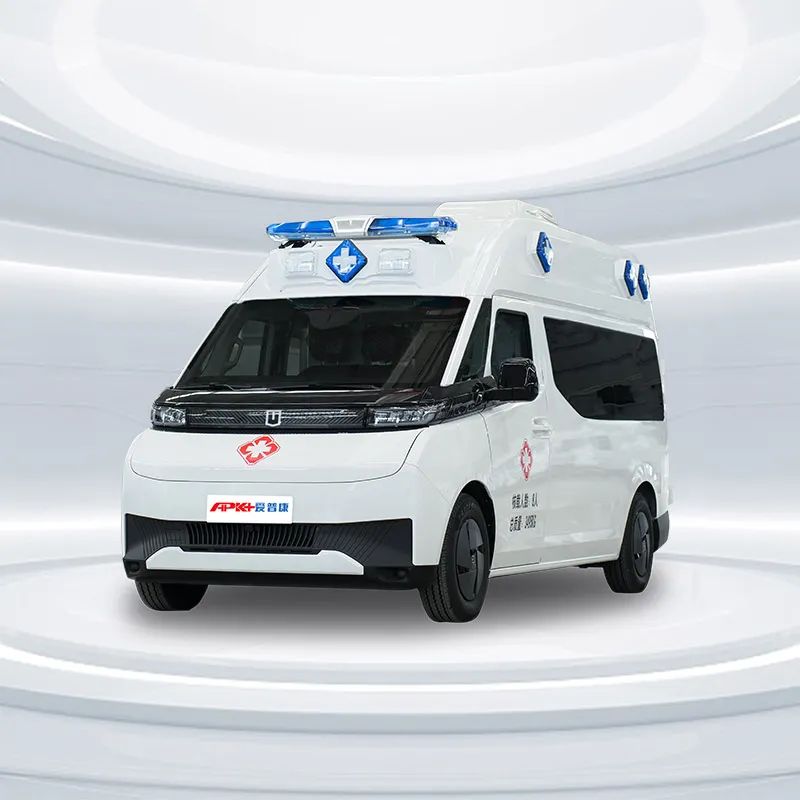

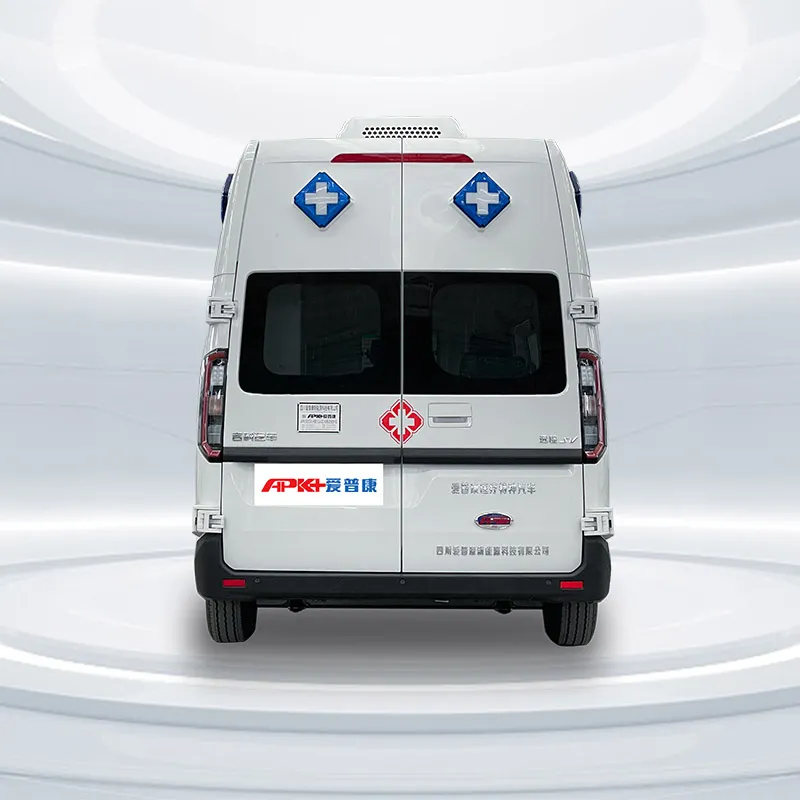

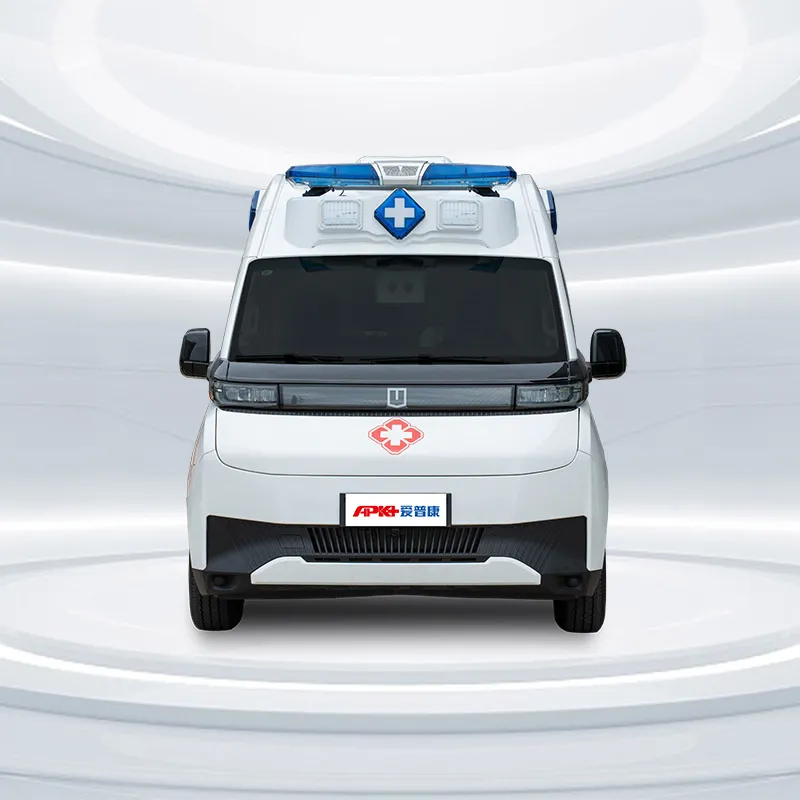

geely super van pure electric ambulance 1
ICU APK5035XJHBEV2420

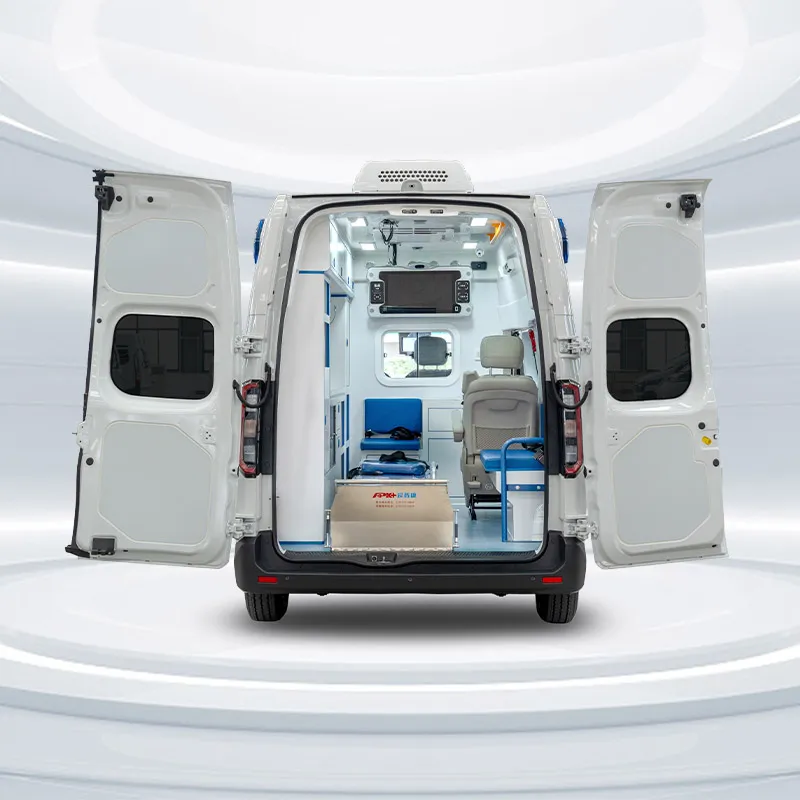

APK/Ambulance/Geely/MWB/LR/AT/New Energy. Ambulance provides advanced medical transport services for patients requiring continuous intensive care and advanced life support, the vehicle can be customized with different exterior designs, interior layouts, and medical configurations according to customer requirements.

Specification of ICU APK5035XJHBEV2420 Ambulance


Main Vehicle Specifications
Dimensions (mm)Length: 5495 Width: 1980
Corresponding Optional Style HeightHeight: 2700
Drive Motor TechnologyMotor Brand: HASCO Magna
Motor Type: Permanent Magnet Synchronous
Battery BrandCATL 83kWh
Battery Heating/CoolingLiquid Cooling and Heating
Motor Rated Power / Peak Power (kW)66/170
Braking SystemFront and Rear Disc Brakes
Drive ModeFront-Wheel Drive
Steering SystemElectric Power Steering
Wheelbase (mm)3600
Transmission TypeSingle-Speed Electric Transmission
SteeringLeft-hand drive (LHD) / Right-hand drive (RHD)
Vehicle Safety Assistance SystemABS
Maximum Torque (N·m / rpm)336
Maximum Vehicle Speed (km/h)100
Rated Passenger Capacity (seats)8 persons
Standard Vehicle Features2 Remote Control Keys
Overspeed Warning
Electric Air Conditioning
One-Touch Start
LED Headlights
Rear Parking Radar
Multifunction Steering Wheel
Driver and Front Passenger Airbags
Rear Fog Light + High-Mounted Brake Light
DC Fast Charging: 36 minutes, AC Slow Charging: 9 hours
Electric Mirror Adjustment + Heated Defrost Function
